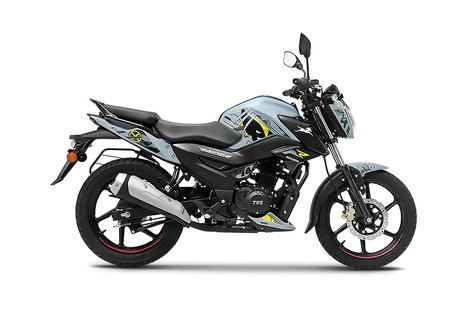

TVS Raider SmartXonnect
Overview of TVS Raider SmartXonnect
TVS Raider SmartXonnect General Features Engine Type Air and oil cooled single cylinder, SI Top Speed - Engine Capacity - Starting - Brakes Disc Gear Box 5 Speed Fuel Tank Capacity 10 L Tyre Type Tubeless TVS Raider SmartXonnect Standard Features Brakes Pass Switch Cooling System ABS CBS Ebs Body Graphics Carry Hook Shutter Lock -

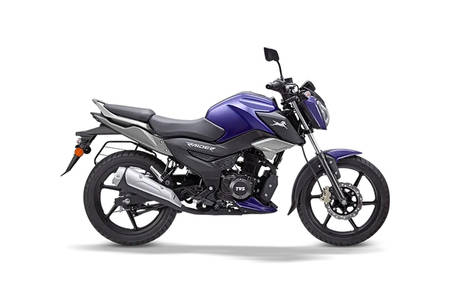

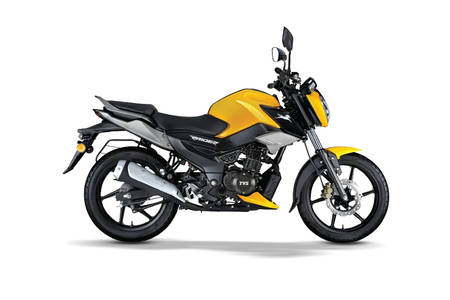

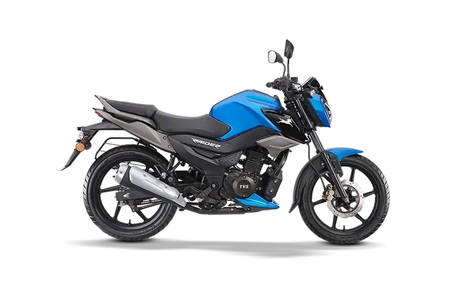

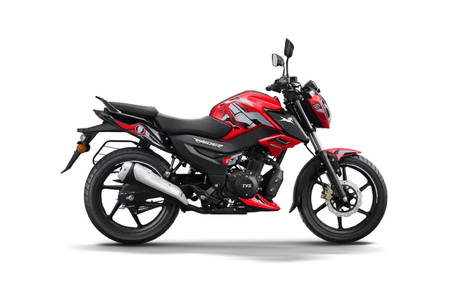

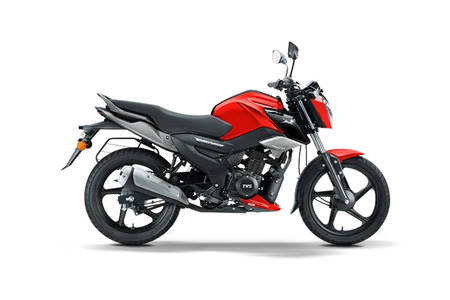

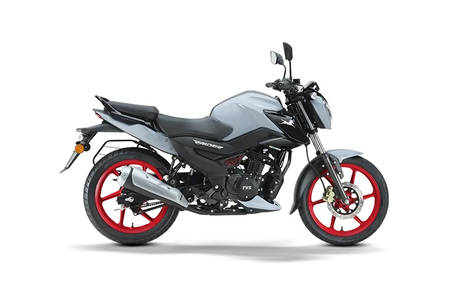

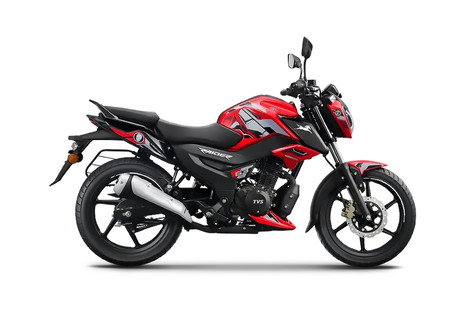

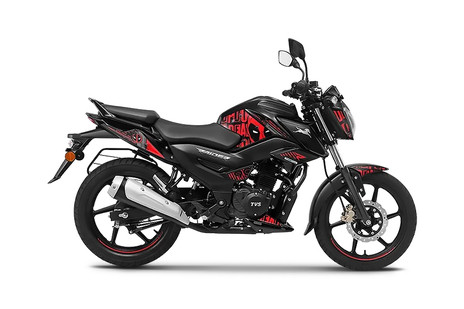

Available Colors of TVS Raider SmartXonnect
-
TVS Raider SmartXonnect Specification
TVS Raider SmartXonnect Engine & performance Engine Type Air and oil cooled single cylinder, SI Displacement (CC) 124.8 Mileage (KM/L) - Bore 53.5 mm Stroke 55.5 mm Compression Ratio - Maximum Power 11.38 PS @ 7500 rpm Maximum Torque 11.2 Nm @ 6000 rpm Starting Self Start Only Maximum Speed - TVS Raider SmartXonnect Transmission Gear Box 5 Speed Clutch Wet - Multi plate type Transmission Type Manual TVS Raider SmartXonnect Fuel Fuel Capacity 10 L Supply System - Fuel Reserve - Fuel Gauge Digital Digital Fuel Gauge - TVS Raider SmartXonnect Brake Brakes Disc Front Brake Disc Rear Brake Drum TVS Raider SmartXonnect Tyre Size Tyre Size Front :-80/100 - 17,
Rear :-100/90 - 17
Radial Tyres - TVS Raider SmartXonnect Wheel Size Wheel Size Front :-431.8 mm,
Rear :-431.8 mmWheel Base 1326 mm TVS Raider SmartXonnect Chassis and Suspension Bike Suspension - TVS Raider SmartXonnect Frame Chassis/ Frame - TVS Raider SmartXonnect Electrical Ignition Electronic Control Unit Battery Type Lead Acid Head Lamp - Tail Lamp - Turn Signal Lamp Bulb -
TVS Raider SmartXonnect Features
-
TVS Raider SmartXonnect Details
TVS Raider SmartXonnect Details -
TVS Raider SmartXonnect Dimensions
TVS Raider SmartXonnect Exterior Dimensions Length (mm) 2070 mm Height (mm) 1028 mm Width (mm) 785 mm Ground Clearance (mm) 180 mm Saddle Height - Kerb Weight 123 kg Total Weight - Weight Carrying Capacity - Chassis/ Frame - Wheel Base 1326 mm -
Disclaimer : View shown is for top variant and actual accessories / fitment may vary across variants
