    Overview of TVS Raider Drum

    TVS Raider Drum General Features
    Engine Type Air and oil cooled single cylinder, SI
    Top Speed -
    Engine Capacity -
    Starting -
    Brakes Drum
    Gear Box 5 Speed
    Fuel Tank Capacity 10 L
    Tyre Type Tubeless
    TVS Raider Drum Standard Features
    Brakes
    Pass Switch
    Cooling System
    ABS
    CBS
    Ebs
    Body Graphics
    Carry Hook
    Shutter Lock

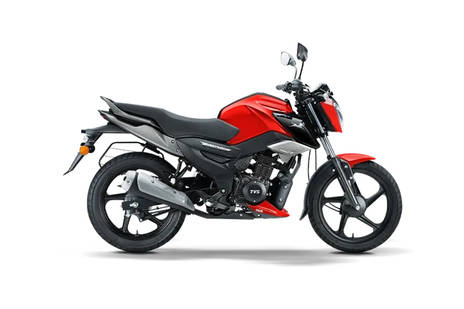

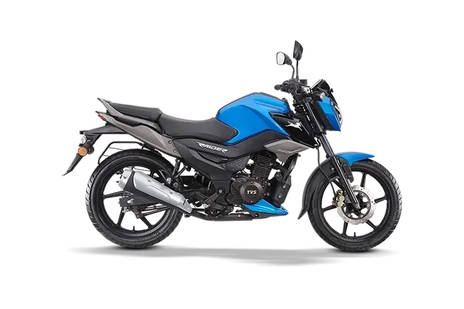

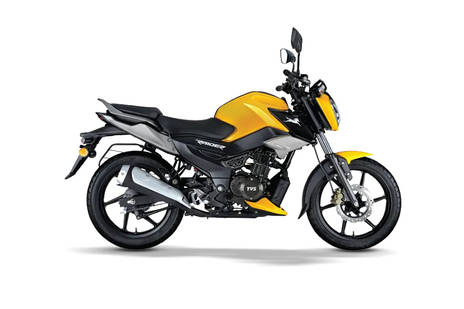

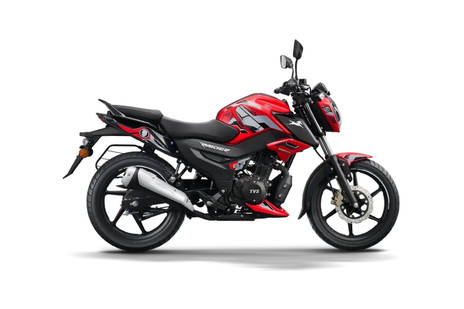

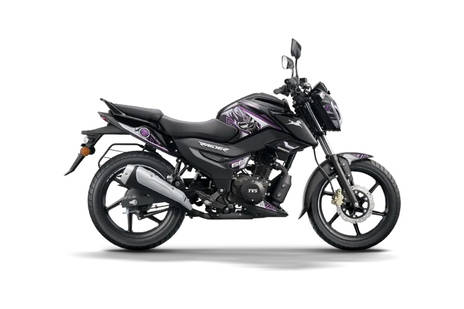

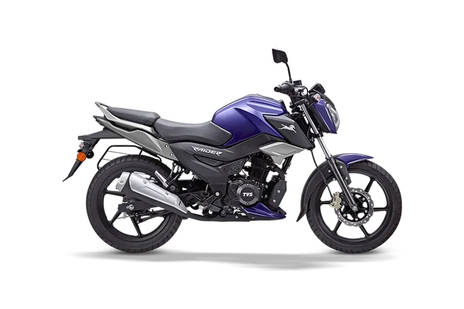

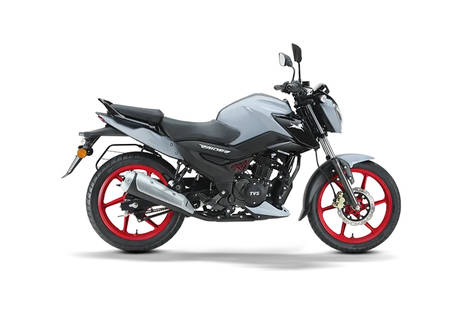

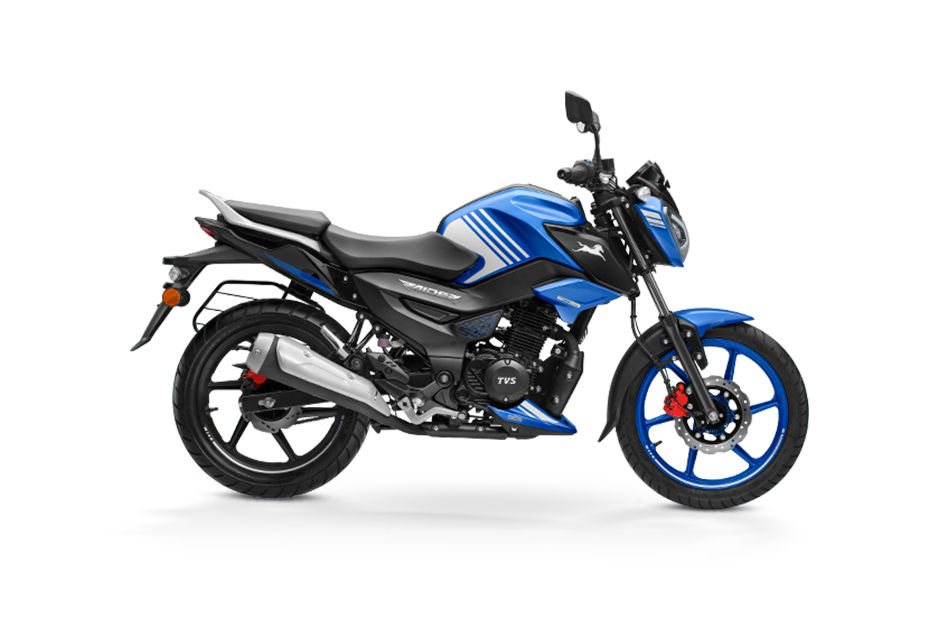

  • Available Colors of TVS Raider Drum

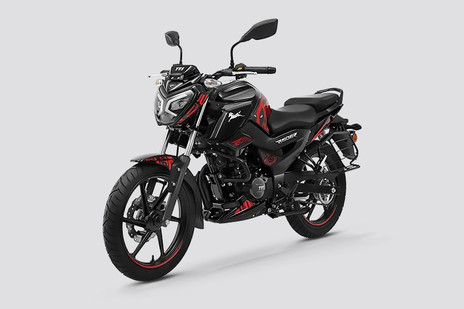

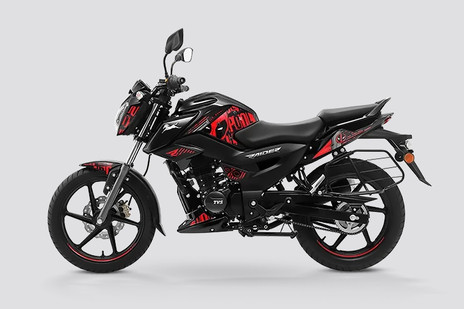

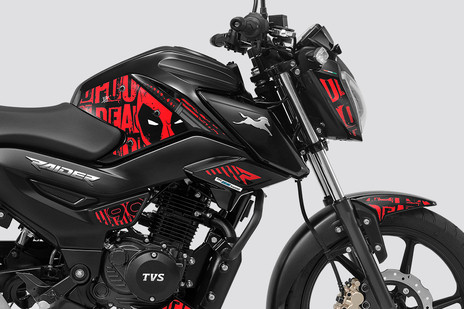

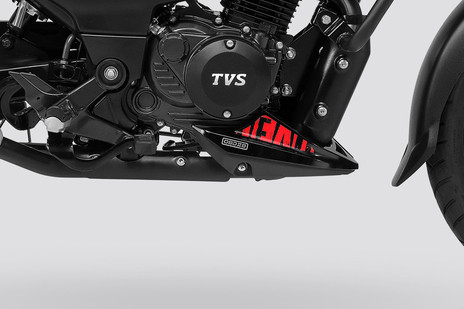

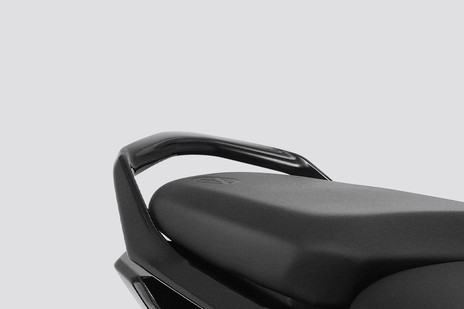

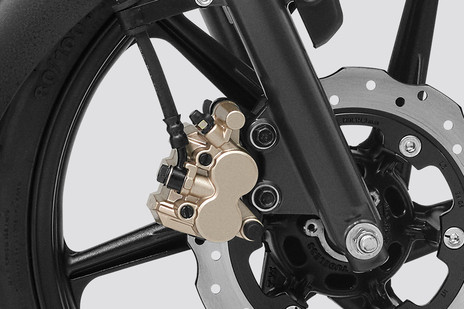

  • TVS Raider Drum Pictures

  • TVS Raider Drum Specification

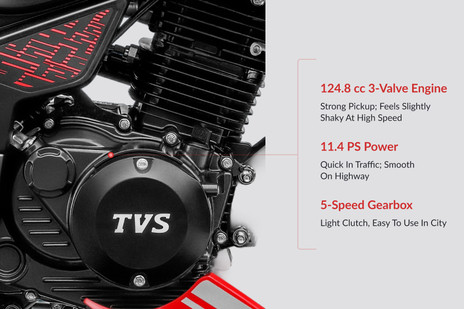

    TVS Raider Drum Engine & performance
    Engine Type Air and oil cooled single cylinder, SI
    Displacement (CC) 124.8
    Mileage (KM/L) -
    Bore 53.5 mm
    Stroke 55.5 mm
    Compression Ratio -
    Maximum Power 11.38 PS @ 7500 rpm
    Maximum Torque 11.2 Nm @ 6000 rpm
    Starting Self Start Only
    Maximum Speed -
    TVS Raider Drum Transmission
    Gear Box 5 Speed
    Clutch Wet - Multi plate type
    Transmission Type Manual
    TVS Raider Drum Fuel
    Fuel Capacity 10 L
    Supply System -
    Fuel Reserve -
    Fuel Gauge Digital
    Digital Fuel Gauge -
    TVS Raider Drum Brake
    Brakes Drum
    Front Brake Drum
    Rear Brake Drum
    TVS Raider Drum Tyre Size
    Tyre Size

    Front :-80/100 - 17,

    Rear :-100/90 - 17
    Radial Tyres -
    TVS Raider Drum Wheel Size
    Wheel Size

    Front :-431.8 mm,

    Rear :-431.8 mm
    Wheel Base 1326 mm
    TVS Raider Drum Chassis and Suspension
    Bike Suspension -
    TVS Raider Drum Frame
    Chassis/ Frame -
    TVS Raider Drum Electrical
    Ignition Electronic Control Unit
    Battery Type -
    Head Lamp -
    Tail Lamp -
    Turn Signal Lamp Bulb

  • TVS Raider Drum Features

  • TVS Raider Drum Details

    TVS Raider Drum Details

  • TVS Raider Drum Dimensions

    TVS Raider Drum Exterior Dimensions
    Length (mm) 2070 mm
    Height (mm) 1028 mm
    Width (mm) 785 mm
    Ground Clearance (mm) 180 mm
    Saddle Height 780 mm
    Kerb Weight 123 kg
    Total Weight -
    Weight Carrying Capacity -
    Chassis/ Frame -
    Wheel Base 1326 mm

  • Disclaimer : View shown is for top variant and actual accessories / fitment may vary across variants
