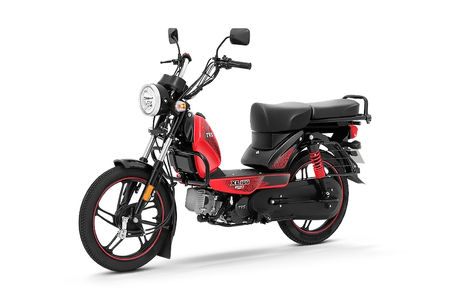

  • TVS XL100 Win Edition
    Rs. 59,180*
    Ex-Showroom in in Ahmedabad
    Get June Offers

    Overview of TVS XL100 Win Edition

    TVS XL100 Win Edition General Features
    Engine Type 4 Stroke Single Cylinder
    Top Speed -
    Engine Capacity -
    Starting -
    Brakes Drum
    Gear Box -
    Fuel Tank Capacity -
    Tyre Type Tube
    TVS XL100 Win Edition Standard Features
    Brakes
    Pass Switch
    Cooling System
    ABS
    CBS
    Ebs
    Body Graphics
    Carry Hook
    Shutter Lock

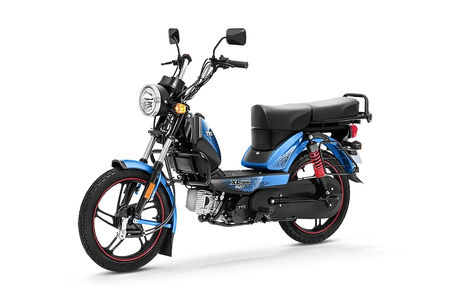

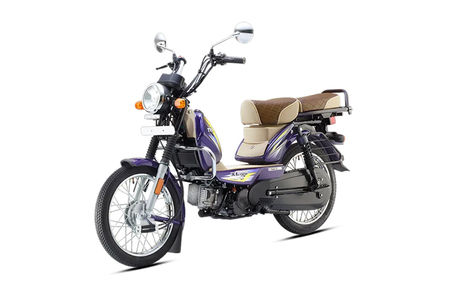

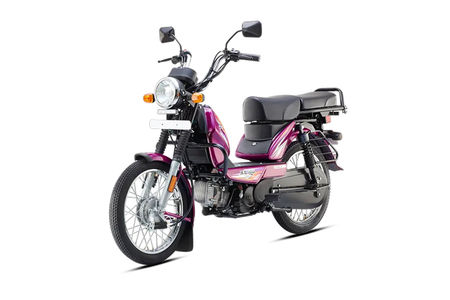

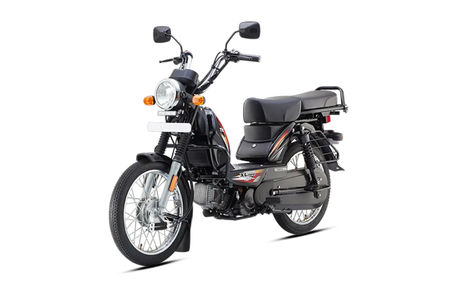

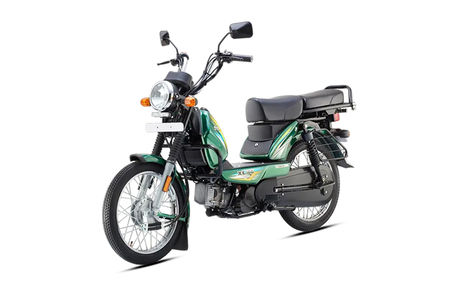

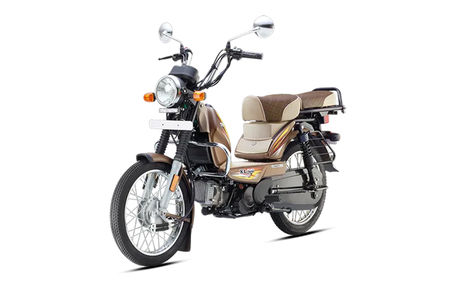

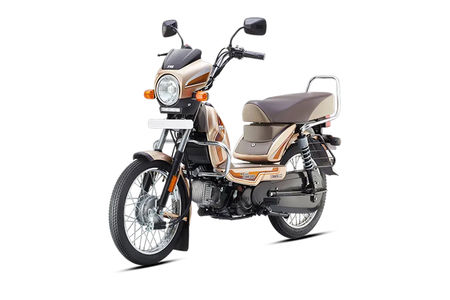

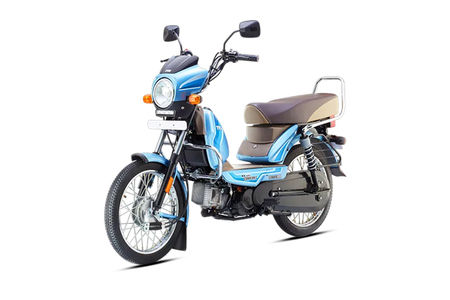

  • Available Colors of TVS XL100 Win Edition

  • TVS XL100 Win Edition Pictures

  • TVS XL100 Win Edition Specification

    TVS XL100 Win Edition Engine & performance
    Engine Type 4 Stroke Single Cylinder
    Displacement (CC) 99.7
    Mileage (KM/L) -
    Bore 51 mm
    Stroke 48.8 mm
    Compression Ratio -
    Maximum Power 4.4 PS @ 6000 rpm
    Maximum Torque 6.5 Nm @ 3500 rpm
    Starting Kick Start Only
    Maximum Speed -
    TVS XL100 Win Edition Transmission
    Gear Box -
    Clutch Centrifugal Wet Clutch
    Transmission Type Automatic
    TVS XL100 Win Edition Fuel
    Fuel Capacity -
    Supply System Fuel Injection
    Fuel Reserve -
    Fuel Gauge Analog
    Digital Fuel Gauge -
    TVS XL100 Win Edition Brake
    Brakes Drum
    Front Brake Drum
    Rear Brake Drum
    TVS XL100 Win Edition Tyre Size
    Tyre Size

    Front :- 2.5-16

    Rear :-2.5-16
    Radial Tyres -
    TVS XL100 Win Edition Wheel Size
    Wheel Size

    Front :-406.4 mm,

    Rear :-406.4 mm
    Wheel Base 1228 mm
    TVS XL100 Win Edition Chassis and Suspension
    Bike Suspension -
    TVS XL100 Win Edition Frame
    Chassis/ Frame -
    TVS XL100 Win Edition Electrical
    Ignition Fly wheel magneto 12V, 200W @ 5000 rpm
    Battery Type Lead Acid
    Head Lamp -
    Tail Lamp -
    Turn Signal Lamp Bulb

  • TVS XL100 Win Edition Features

  • TVS XL100 Win Edition Details

    TVS XL100 Win Edition Details

  • TVS XL100 Win Edition Dimensions

    TVS XL100 Win Edition Exterior Dimensions
    Length (mm) 1895 mm
    Height (mm) 1077 mm
    Width (mm) 670 mm
    Ground Clearance (mm) 158 mm
    Saddle Height -
    Kerb Weight 89 kg
    Total Weight -
    Weight Carrying Capacity 150 kg
    Chassis/ Frame -
    Wheel Base 1228 mm

  • Disclaimer : View shown is for top variant and actual accessories / fitment may vary across variants
